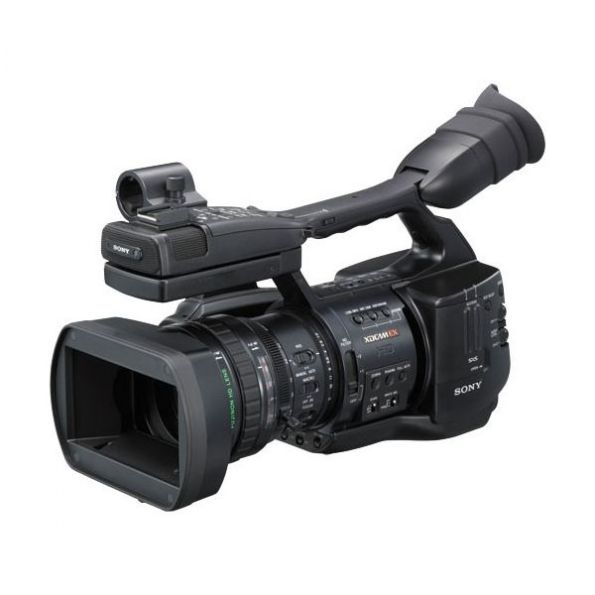

Sony PMW-EX1 1080P HD Professional Camcorder

Free Shipping

Availability : In Stock

Ships in 1-2 Business Days
Item: 323026
Manufacture: Sony
Condition: New
Extended Warranty Coverage:
Price: $2,545.00 $3,299.99
Call Us855-485-4885
SORT BY

The easiest way to learn both the fundamentals and advanced features of the new Sony EX1 & EX1R camcorders and their state-of-the-art tapeless workflow.

This 3.5-hour, 3-disc (DVD video) workshop includes tutorials, step-by-step examples, and detailed instructions covering the most important aspects of camera setup, menus, shooting techniques, clip naming, file management, clip importing, picture profile settings, basic editing, and even archiving.

This DVD will pay for itself many times over by saving you hours of time figuring out things on your own. This is a completely independent production with no participation, sponsorship, input, or approval from Sony -- so it delivers unbiased information and professional advice that can't be found in the owner's manual.

This DVD workshop is designed to help anyone, from a novice to an experienced ENG/EFP shooter, get the best results from their EX1 or EX1R by providing real-world examples and techniques that are easy to put into practice. Like all Vortex Media training DVDs, this workshop has been carefully researched, planned and scripted (not presented as"live" or ad lib). This DVD was produced by professionals with years of broadcast-level experience who have the knowledge to recognize what's important about the EX1/EX1R and how to teach it without getting bogged down in jargon.

  • Clip naming suggestions that will avoid disaster in post
  • Tips for setting exposure accurately
  • Suggested Picture Profile settings
  • Suggested focusing techniques
  • Recommended settings for the Assign Buttons
  • Suggestions for time-code settings
  • Warnings about some features and settings to avoid
  • B&W vs. Color viewfinder settings
  • Suggested Shutter Speeds for various recording modes
  • Tips for better looking Time-lapse clips
  • Recording slow-motion
  • Deleting clips on-the-fly
  • Splitting clips
  • Getting a perfect white balance
  • Monitoring options for the EX1
  • Managing storage space on the memory cards
  • Importing clips into your computer
  • Managing clips, making back-up copies, and archiving
  • XDCAM Transfer overview settings
  • Comparisons of various shooting modes
  • Step-by-step instructions for import and archive
Mass
Approx. 2.4 kg (5 lb 4 oz) (body)
Approx. 2.8 kg (6 lb 2 oz) (with lens hood, large eye cup, BP-U30 battery, one SxS PRO memory card)

Dimensions (W x H x D)
178 x 176 x 311.5 mm (7 1/8 x 7 x 12 3/8 inches) without projection

Power requirements
DC 12 V

Power consumption
Approx. 13 W (while recording, with color LCD OFF, 1920 x 1080/59.94i mode)

Operating temperature
0 to +40 °C (+32 to +104°F)

Storage temperature
-20 to +60°C (-4 to +140°F)

Continuous operating time
Approx. four hours with BP-U60 battery
Approx. two hours with BP-U30 battery

Recording format
Video
MPEG-2 Long GOP[br}HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14

Audio
Linear PCM (2ch, 16-bit, 48-kHz)

Recording frame rate
NTSC setting
HQ mode: 1920 x 1080/59.94i, 29.97P, 23.98P, 1280 x 720/59.94P, 29.97P, 23.98P
SP mode: 1440 x 1080/59.94i

PAL setting
HQ mode: 1920 x 1080/50i, 25P, 1280 x 720/50P, 25P
SP mode: 1440 x 1080/50i

Recording/Playback time
HQ mode
Approx. 50 min. with SBP-16 (16 GB) memory card, Approx. 25 min. with SBP-8 (8 GB) memory card

SP mode
Approx. 70 min. with SBP-16 (16 GB) memory card, Approx. 35 min. with SBP-8 (8 GB) memory card

Lens
Zoom ratio
14x (optical), servo/manual selectable

Focal length
f = 5.8 to 81.2 mm (equivalent to 31.4 to 439 mm on 35 mm lens)

Iris
F1.9 to F16 and Close, servo/manual selectable

Maximum relative aperture
1:1.9

Focus
AF/MF/Full MF selectable 800 mm to infinity (MACRO OFF), 50 mm to infinity (MACRO ON, Wide), 735 to infinity (MACRO ON, Tele)

Image stabilizer
ON/OFF selectable, shift lens

Filter thread
M77 mm, pitch 0.75 mm (on lens)

Camera
Pickup device
3-chip 1/2-inch type Exmor CMOS

Effective picture elements
1920 (H) x 1080 (V)

Optical system
F1.6 prism system

Built-in filters
ND filter
OFF: Clear, 1: 1/8ND, 2: 1/64ND

Sensitivity (2000 lx, 89.9% reflectance)
F10 (typical) (1920 x 1080/59.94i mode)

Minimum illumination
0.14 lx (typical) (1920 x 1080/59.94i mode, F1.9, +18 dB gain, with 64-frame accumulation)

S/N ratio
54 dB (Y) (typical)

Horizontal resolution
1000 TV lines or more (1920 x 1080i mode)

Shutter speed
1/33 to 1/2000 sec.

Shutter angle
180, 90, 45, 22.5, 11.25 degrees

Slow Shutter (SLS)
2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-, 32-, and 64-frame accumulation

Slow & Quick Motion function
720P
Selectable from 1 to 60 fps as recording frame rate

1080P
Selectable from 1 to 30 fps as recording frame rate

Audio performance
Sampling frequency
48 kHz

Quantization
16 bits

Headroom
20 dB

Frequency response
20 Hz to 20 kHz, +3 dB/-3 dB

Dynamic range
90 dB (typical)

Distortion
Less than 0.1% (with input level of -40 dBu)

Signal inputs/outputs
Audio input
XLR-3-pin (female) (x 2), line/mic/mic +48 V selectable
Mic: -8 dBu to -65 dBu (reference level)
Line: +4 dBu

A/V output
AV multi (x 1)
Audio: -10 dBu (reference level), 47 kΩ
Analogue composite: 1.0 Vp-p, 75 Ω unbalanced
S-Video: Y: 1.0 Vp-p, 75 Ω unbalanced, sync negative

Component output
Mini D (x 1), Y: 1.0 Vp-p, 75 Ω, Pb/Pr: 0.7 Vp-p, 75 Ω

SDI output
BNC (x 1), HD-SDI/SD-SDI selectable

i.LINK input/output
IEEE1394, 4-pin (x 1), HDV stream input/output, S400

USB
Mini-B (x 1), USB 2.0 High-speed

Headphone output
Stereo mini-jack (x 1), 16 Ω, 30 mW

Speaker output
Monaural, 300 mW

DC input
DC jack

Battery input
5-pin

--Built-in LCD monitor--
3.5-inch* type colour LCD monitor, approx. 921000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type

--Viewfinder--
0.54-inch* type colour LCD, 1120 (H) x 225 (V), 16:9

Built-in microphone
Capsule type
Omni-directional stereo electret condenser microphone

Frequency response
50 to 15000 Hz

Media slot
Type
ExpressCard/34 (x 2)

Interface
ExpressCard compatible

• Brand New Factory Fresh Import Model
