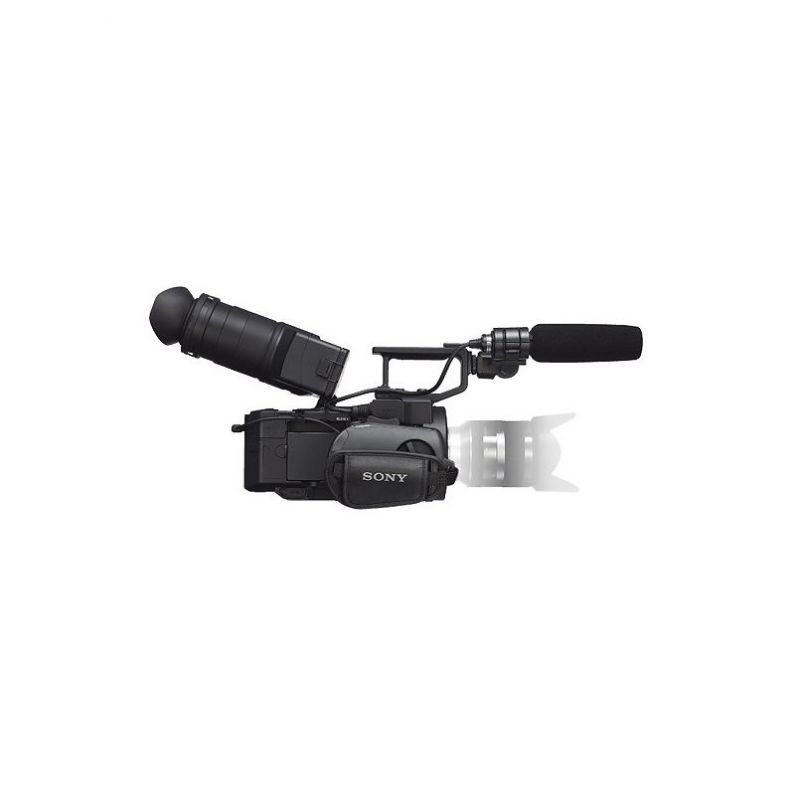

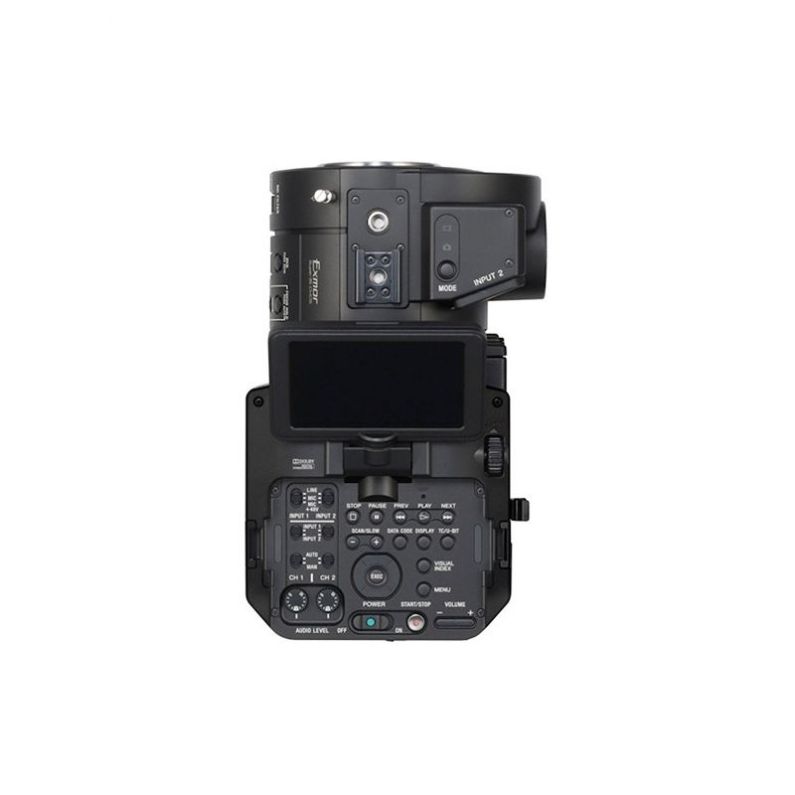

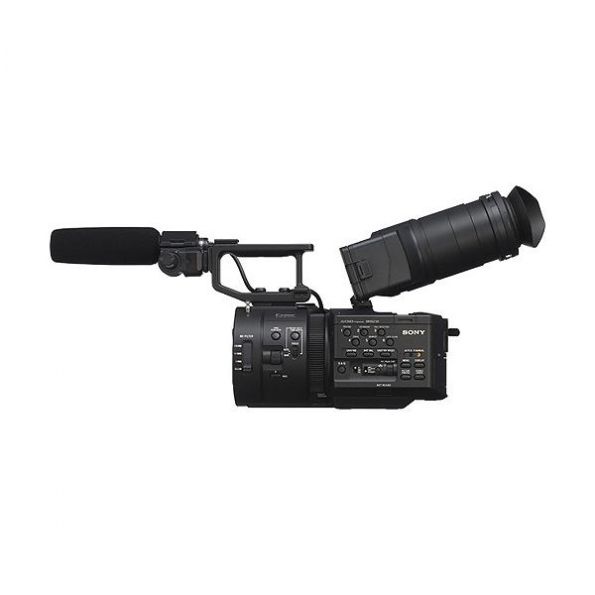

Sony NEX-FS700U Super 35 Camcorder (Body)
Extended Warranty Coverage:
The Sony NEX-FS700U Super 35 Camcorder (Body Only) is a fully professional large-sensor video camera. Hot on the heels of the FS100, this compact, highly modular camera uses a very similar-sized Super 35 CMOS sensor as the FS100. But as a marked improvement over that earlier model's sensor, the FS700 features a native 4K resolution sensor.
Unlike smaller, broadcast-style sensors or the larger "full-frame" sensors of some DSLRs, the NEX-FS700's imaging area matches that of standard Hollywood film cameras, providing complete compatibility with cine-style film lenses (sold separately). The sensor's large size offers a variety of other advantages, including increased control over depth of field, higher sensitivity in low light, lower image noise, and an exceptional dynamic range.
Able to shoot full 1080p video in a range of frame rates up to 60p, the FS700 provides the option of recording AVCHD footage onto SD card/MemoryStick or via the FMU (flash memory unit) port, or it can output 4:2:2 video (with embedded timecode) via HDMI 1.4 or 3G/HD-SDI to an external recording unit. Simultaneous recording to both is also possible when instant backup is called for. There's no stinting on audio, either, as the camera includes not only a shotgun microphone with mount/carrying handle, but dual XLR inputs for recording uncompressed, professional-level sound from an external source.
One unique feature for a camcorder of this class is the FS700's ability to record bursts of super-slow motion video at rates up to a whopping 960 fps. (These bursts range from 8 to 16 seconds, depending of the frame rate). Full-resolution recording is possible at up to 240 fps; at 480 and 960 fps, resolution is reduced.
The 3G/HD-SDI port will get expanded capability when a future firmware and hardware upgrade is available (not included). This will allow 4K output via the BNC as a data stream, which can be recorded to an optional Sony 4K recorder.
Other included features--such as a 3.5" LCD panel with detachable with viewfinder attachment, super sensitivity, a built-in ND filter and up to 960 fps super slow motion, all help to set this model in a class truly by itself. Not only will it intercut perfectly as a 2nd unit or B camera, it can stand on its own in applications as diverse as indie film, commercials, music promos and education.
ISO 500 (0 dB) to ISO 16,000 (30 dB) sensitivity
Cranks from 1 to 960 fps for fast motion to super-slow motion
Four ND filter levels: clear, 2, 4 & 6 stops
Four HyperGamma settings (same as F3)
WorldCam 50/60Hz systems
Exmor Super 35mm sensor 11.6-megapixles
Effective pixels (photo): approx. 8,400,000 pixels (16:9) or approx. 7,100,000 pixels (4:3)
Low aliasing (grossly over sampled HD)
Runs cool, no grain and no fan noise
Large buttons and switches with orange backgrounds for easy auto/manual distinction
Arri Rossette with micro-adjusting (for connecting grips, etc.)
Face detection
Auto/manual iris and focus with Sony lenses (lenses sold separately)
Features dual XLR inputs, a DC input, an FMU port for flash memory unit, SD / MemoryStick card slot, BNC connector and HDMI output
Removable grip features four easy-to-use buttons including Start/Stop, Photo, 4x/8x expandable focus and push-button auto iris
Display offers video/film selections for distance (meters/feet), sensitivity (dB gain/ ISO) and shutter (speed/angle)
BNC connector offers 3G/HD-SDI and a planned future firmware/hardware upgrade will enable 4K data-stream output
Camera supports 1920 x 1080/60p full HD recording and still image capture
Image Sensor | 4K Exmor Super 35 CMOS Image Sensor (11.6MP) |
Effective Pixels | HD: 8,400,000 pixels Photo: 7,100,000 pixels |
Aspect Ratio | HD: 16:9 Photo: 16:9 or 3:2 |
Resolution | Not specified by manufacturer |
Sensitivity | ISO 500 (0 dB) - ISO 16,000 (30 dB) |
ND Filter Switching Mechanism | Clear 1/4 = ND.6 (2 stops) 1/16 = ND1.2 (4 stops) 1/64 = ND1.8 (6 stops) |
Color Temperature | Auto, One Push AB, Indoor (3200K) Outdoor (5800K ± 7 positions) Manual WB Temperature (2300 - 15000K, 100K step) |
Super Slow Motion | 120 fps 240 fps 480 fps 960 fps |
Signal System | 50/60Hz (NTSC/PAL) |
LCD Monitor | 3.5" (8.9 cm) |
Screen Resolution | Approx. 921,000 dots (1920 x 480) |
Viewfinder | Supplied VF tube for LCD |
Shutter Speed | Not specified by manufacturer |
White Balance | Not specified by manufacturer |
Recording Media | Flash Memory Unit (HXR-FMU128) MS PRO Duo (Mark2 only) MS PRO-HG Duo SD/SDHC/SDXC (class 4 and higher) |
Recording Formats | PS max 28 Mbps, 1920 x 1080/60p, 50p (16:9) FX max 24 Mbps, 1920 x 1080/60i, 50i, 30p, 25p, 24p (16:9) 1280 x 720/60p, 50p (16:9) FH approx. 17 Mbps (ave), 1920 x 1080/60i, 50i, 30p, 25p, 24p (16:9) 1280 x 720/60p, 50p (16:9) HQ approx. 9 Mbps (ave), 1440 x 1080/60i, 50i (16:9) LP approx. 5 Mbps (ave), 1440 x 1080/60i, 50i (16:9) HQ approx. 9 Mbps (ave), 720 x 480/60i, 720 x 576/50i (16:9, 4:3) |
Video Recording Format | MPEG-4 AVC/H.264 AVCHD Ver.2.0 (HD video) MPEG-2 PS (SD video) |
Audio Recording Format | Linear PCM 2ch (48 kHz, 16-bit) (in HD) Dolby Digital 2ch (48 kHz, 16-bit) |
Recording/Playback Time | Not specified by manufacturer |
Input/Output Connectors | 3G HD-SDI Output: BNC connecter x 1 HDMI Output: HDMI connecter (type A) x 1 Component Output: mini D terminal x 1 Video Output: RCA Pin x 1 Audio Output: RCA Pin x 2 Headphone Jack: stereo mini jack (3.5 mm) x 1 USB Port: mini-AB x 1 Audio Input 1 / Input 2: XLR 3-pin (female) x 2 (LINE/MIC/MIC +48V selectable) Remote: stereo mini-mini jack (2.5 mm) x 1 |
Power Supply | DC 7.2 V (battery pack) DC 7.6 V (AC-DC adapter) |
Power Consumption | 9.6W (60i) 8.8W (50i) |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Dimensions (WxHxD) | 5.7 x 7.0 x 9.3" (145 x 178.5 x 235.5 mm) including protrusions |
Weight | Body Only: 3.7 lb (1680 g) Fully Loaded: 6.75 lb (3060 g) |
• Brand New Factory Fresh Import Model
